The new Logic 2 Automation API is now available in 2.4.0!
Protocol Decoders
Effortlessly decode protocols like SPI, I2C, Serial, and many more. Leverage community created analyzers or build your own low-level or high-level protocol analyzer. |
|
It Just Works
Debugging that just works. Stable, easy to use, and fully cross platform, Logic 2 makes it dirt simple to capture, visualize, and search your signals. |
|
Trigger and Search
Explore your board-level comms interactively with Live Trigger on Protocol and Protocol Search. Unlike a scope, all your traffic is being recorded — you can always stop and analyze exactly what happened and why. |
|
Measurements
Verify behavior instantly with measurements wherever you point your mouse. You can even create your own measurements or use ones from the community. |
|
SDK, Extensions and Community
Take on any comms challenge by creating your own low-level protocol analyzer, high-level protocol analyzer, or measurement. And if you like, you can easily share your extension with the Saleae community. |
|
Effortlessly decode protocols like SPI, I2C, Serial, and many more. Leverage community created analyzers or build your own low-level or high-level protocol analyzer. |
|
Debugging that just works. Stable, easy to use, and fully cross platform, Logic 2 makes it dirt simple to capture, visualize, and search your signals. |
|
Explore your board-level comms interactively with Live Trigger on Protocol and Protocol Search. Unlike a scope, all your traffic is being recorded — you can always stop and analyze exactly what happened and why. |
|
Verify behavior instantly with measurements wherever you point your mouse. You can even create your own measurements or use ones from the community. |
|
Take on any comms challenge by creating your own low-level protocol analyzer, high-level protocol analyzer, or measurement. And if you like, you can easily share your extension with the Saleae community. |
|
Craftsmanship

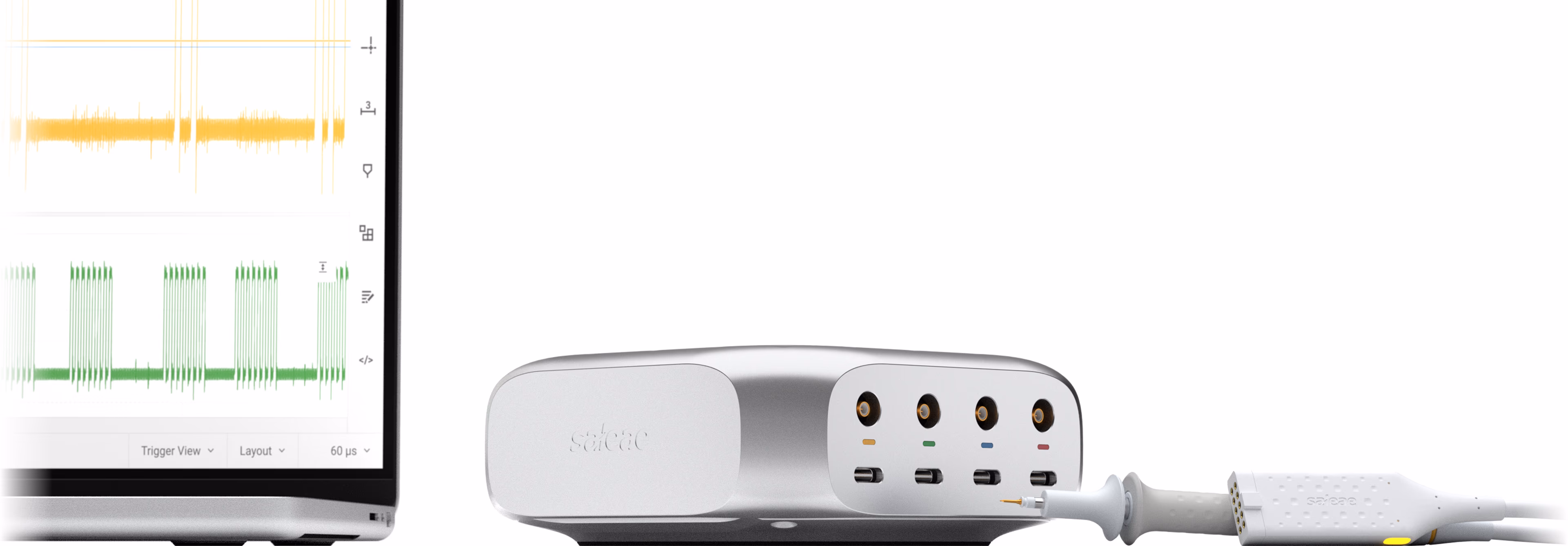

Logic 8 shown.
Craftsmanship
We really care about this stuff. And we think that when you get Logic in your hands, you’ll be able to tell. Click the circles to learn more about what goes into Logic.
Machined Aluminum
Every Logic starts as extruded 6061 T6 aluminum plate. It is then precisely machined with a 3-axis CNC mill, using four different setups and seven different solid carbide tools.
Metal Finishing
The machined enclosure is cleaned and then textured with a light glass bead blast to give it a uniform, elegant look. Next the part is anodized, brightened, colored and sealed. This is the finish quality you would expect from pro-audio equipment or a new MacBook.
RGB LED
Choose your favorite color to customize your Logic. The brightness is controlled by PWM, and we’ve RC-filtered the PWM so the LED does not contribute any measurable degradation to your signals.
Low-jitter ADC clock
The low jitter of the ADC sampling clock assures the SNR is not degraded.
FPGA
Logic 8, Logic Pro 8 and Logic Pro 16 feature the Xilinx Spartan 6 FPGA,which interfaces to the ADC, digital inputs, and USB bridge. The FPGA also has the capability of performing over 5 billion DSP operations per second (over 10 billion on Pro 16). When you use more analog channels than can be streamed over USB at once, we need to filter and decimate that data in the FPGA – reducing the bandwidth without introducing aliasing. Logic Pro 16 produces analog data at a rate of 9.6Gbit – that’s a lot of data to process in real time!
PCB
PCB assembly is performed by our assembly partners in Fremont, California. Logic 8 is 8-layer, and Logic Pro 8 and 16 have, well, more layers than that.
Dual-Use Inputs and Signal Integrity

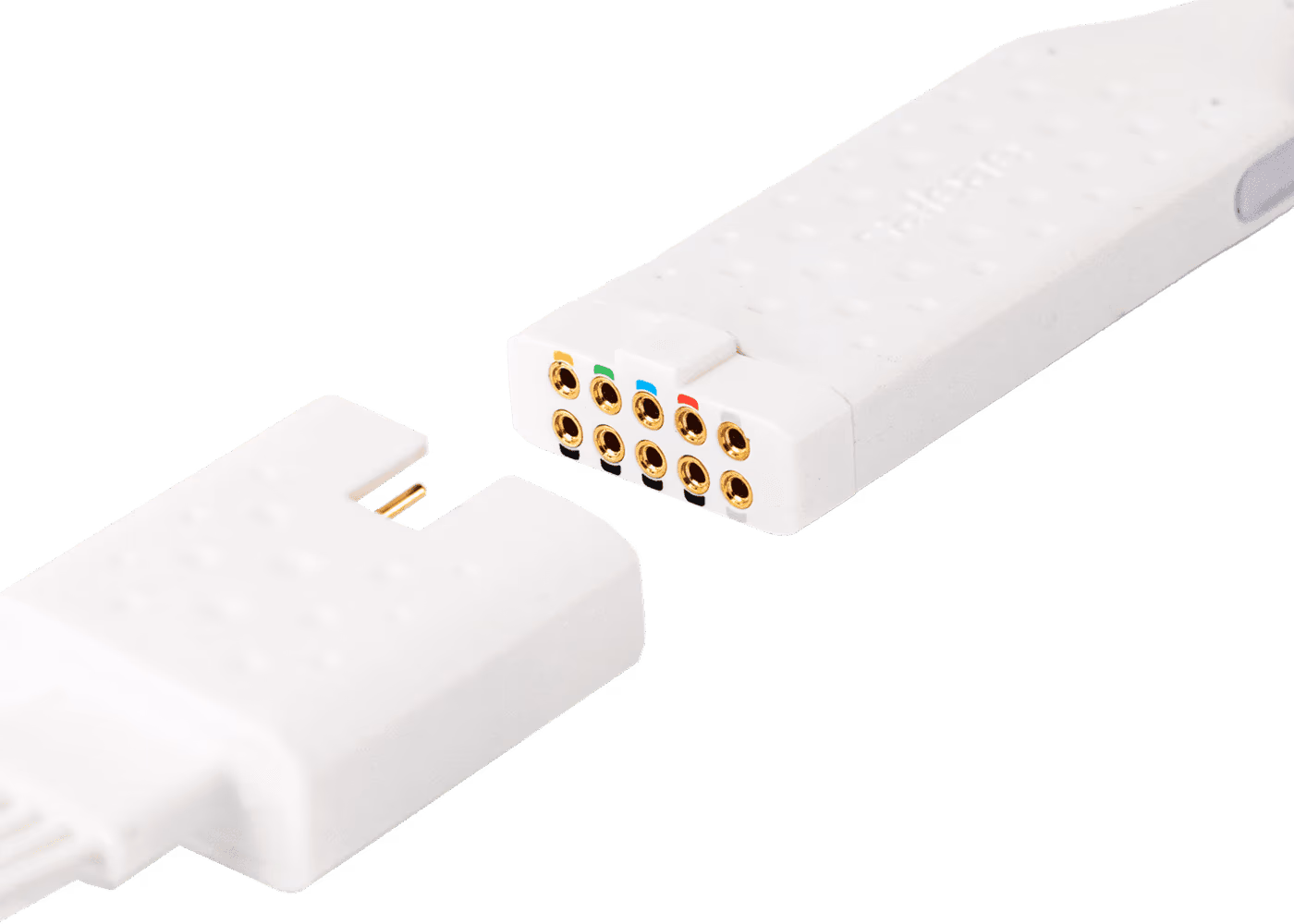

To provide optimal signal integrity with a flying lead test probe, each input has a dedicated ground wire. In most situations, users can leave extra grounds disconnected. In addition, on Logic 8, Logic Pro 8, and Logic Pro 16, each input can be configured to be an analog input, a digital input, or both at the same time.
ADC
Logic 8, Pro 8, and Pro 16 all have 8-channel ADCs. (Pro 16 has two.) Logic 8 has an analog sample rate of 10MS/s at 10-bits, and Logic Pro 8 and Pro 16 sample at 50MS/s at 12-bits. For Logic Pro 16, this is an awesome 9.6Gbit of data which must be handled by the FPGA. When you use more channels than USB can handle, the FPGA filters and decimates the data in real time so that the resulting signal does not exhibit any aliasing from frequencies above the new bandwidth.
Anti-aliasing Filters
An anti-aliasing filter prevents frequencies higher than the Nyquist frequency from being sampled. Any frequency content higher than Nyquist will result in aliasing, which, generally speaking, makes it impossible to compute an accurate FFT. Filters can have an adverse effect on both gain and phase so this must be carefully accounted for.
Over 20,000 embedded developers actively use Logic every month.
Tech Specs
Compare Logic Analyzers
Tech Specs
Compare Logic Analyzers
- FAQ
- Great Service
- 3-Year Warranty
Your questions are welcome here.
From help with placing an order to the most obscure technical question, we’re here to help. Your technical questions are answered by EEs and CSEs with a deep knowledge of our hardware, software, and embedded applications. Plus, we're friendly!
Try it Now3-Year Warranty and 180 days for returns
Your new Logic is covered against absolutely any malfunction, regardless of cause, for three years. Replacement units ship immediately, and shipping charges are on us. Just drop us a line.
Decide within 180 days that our products aren’t for you, and return them for a full refund, including shipping. To arrange for a replacement or return, just contact us.
